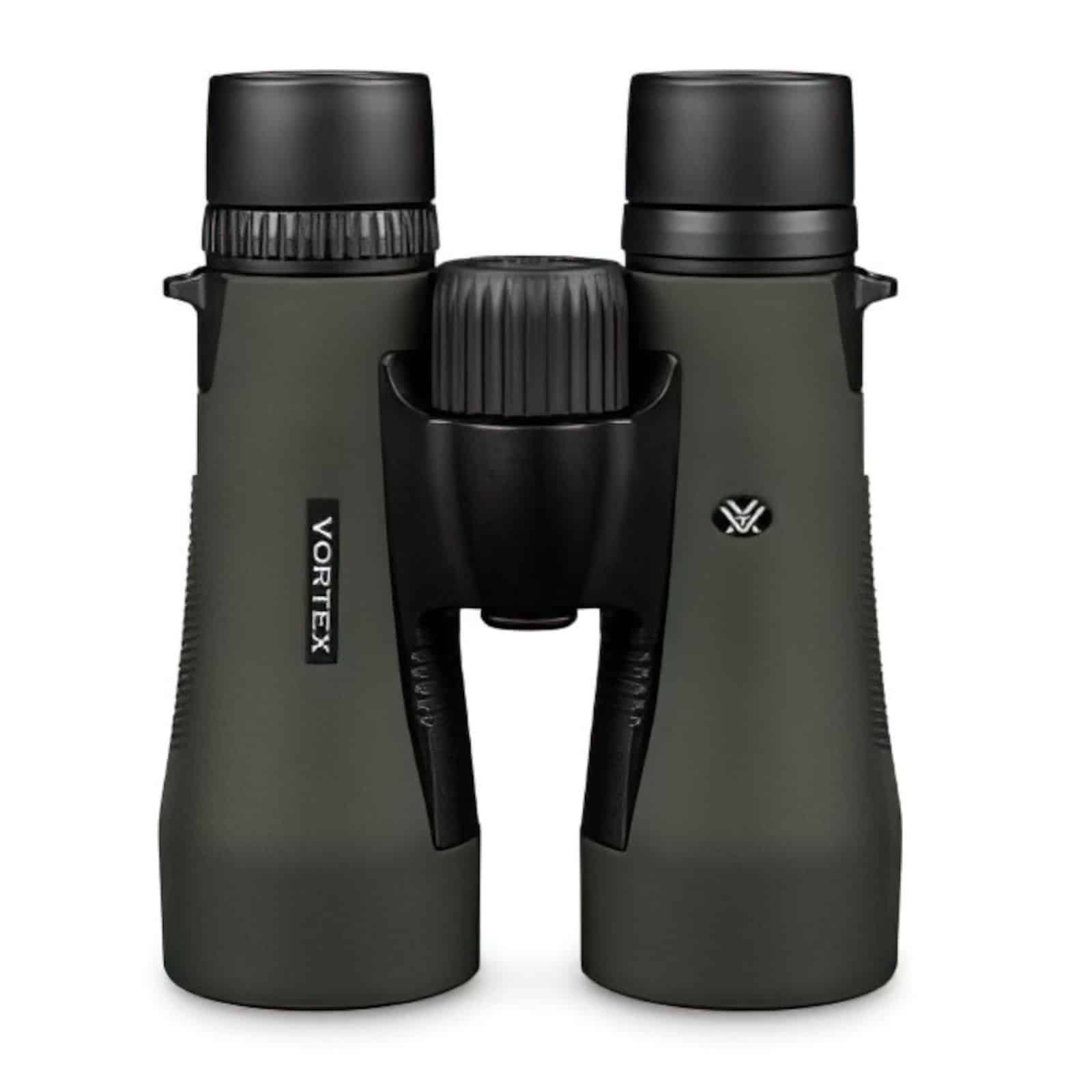

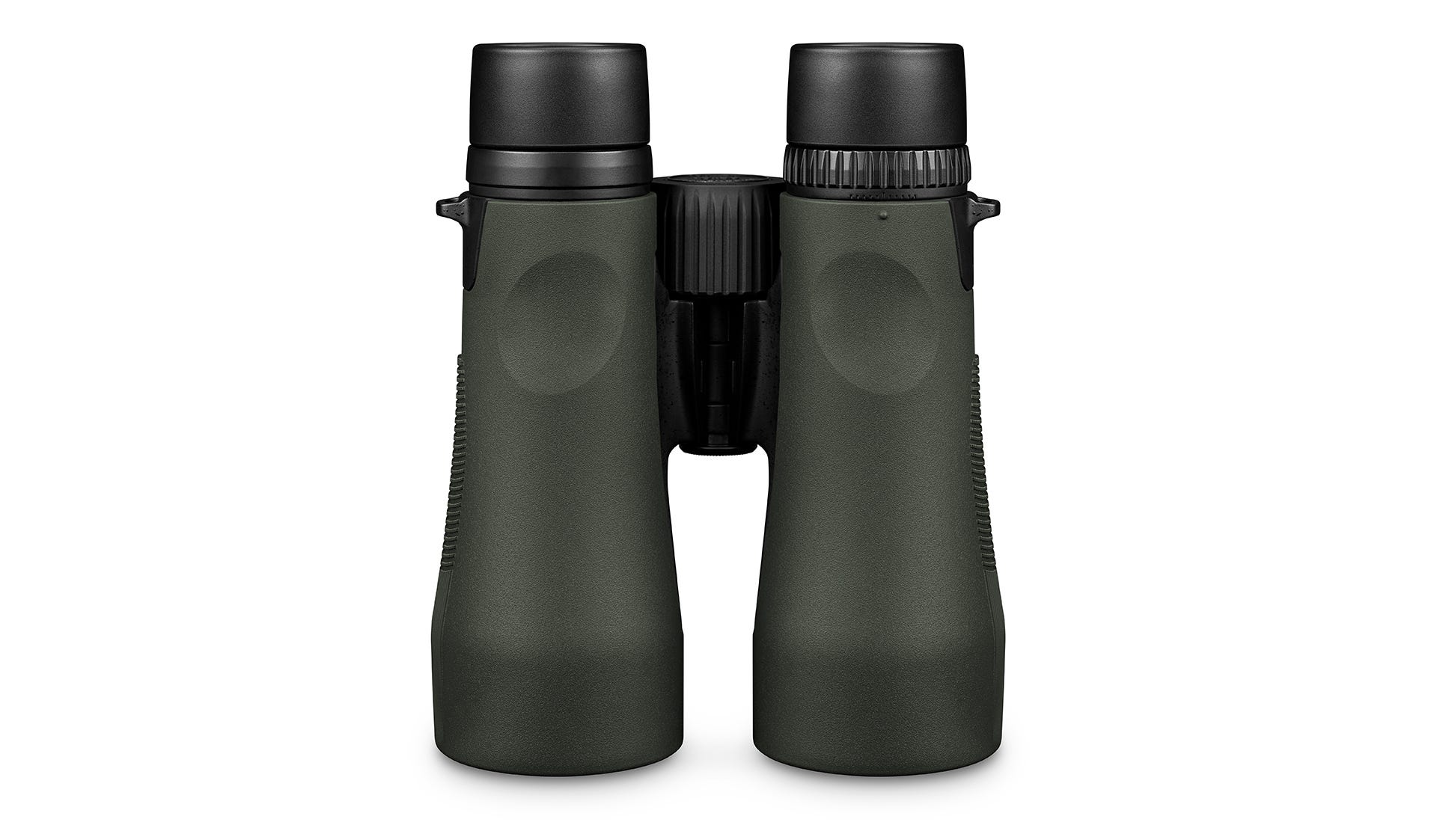

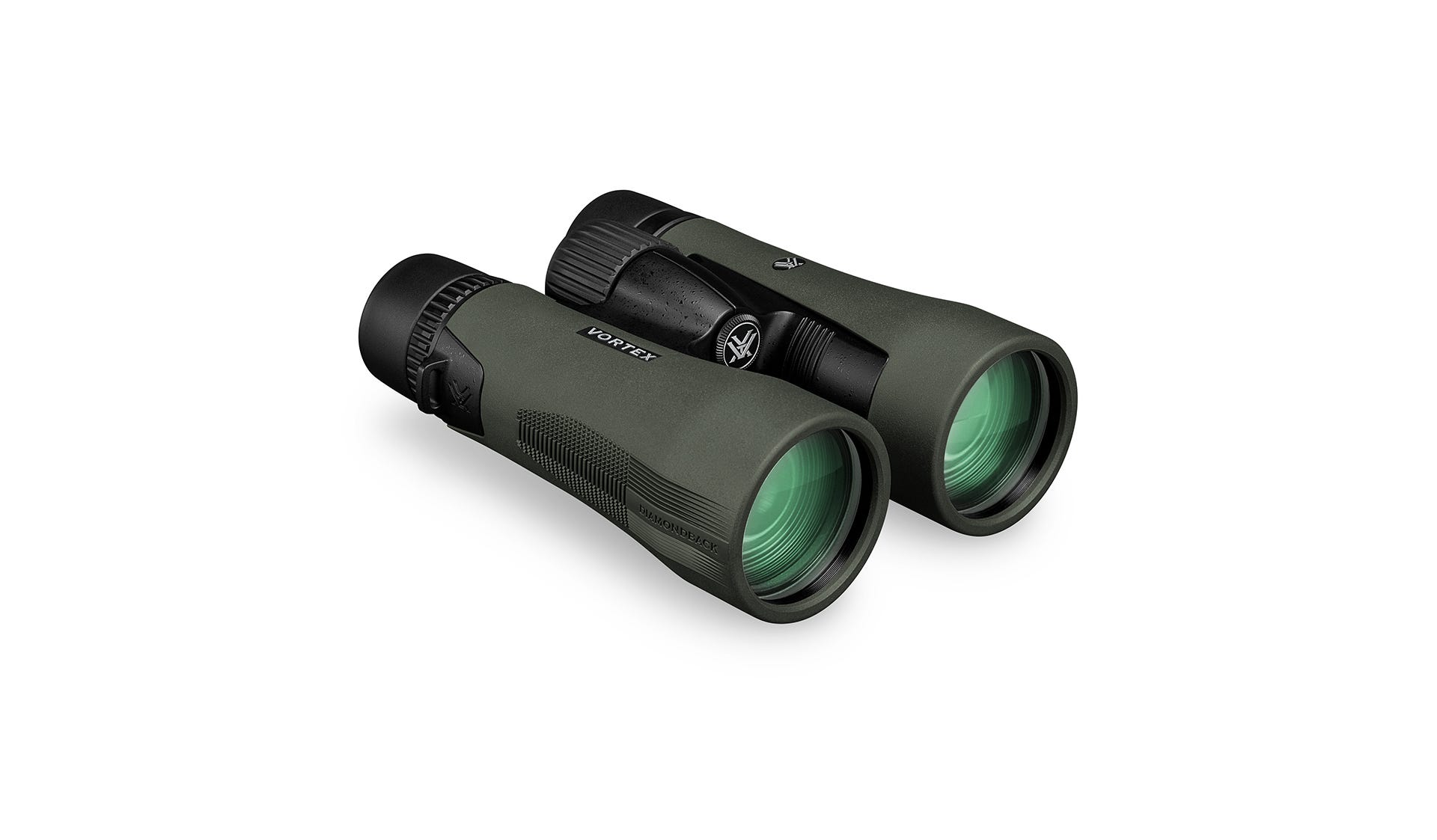

DB-216 Vortex Optics DIAMONDBACK HD 10X50

The Diamondback HD smashes the scale of price vs performance, delivering a rock-solid optic that optically punches high above its class. The included GlassPakTM binocular harness keeps your glass close at hand, ready to deploy at a moment's notice, all while providing protection and significantly more comfort than traditional neck straps.

Features:

Optical Features:

HD Optical System	Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
Fully Multi-Coated	Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Dielectric Coating	Multi-layer prism coatings provide bright, clear, color-accurate images.
ArmorTek	Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

Construction Features:

Rubber Armor	Provides a secure, non-slip grip, and durable external protection.
Waterproof	O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.
Shockproof	Rugged construction withstands recoil and impact.
Fogproof	Argon gas purging prevents internal fogging over a wide range of temperatures.
Roof Prism	Valued for greater durability and a more compact size.

Convenience Features:

Adjustable Eyecups	Twist up and down for comfortable viewing with or without eyeglasses.
Center Focus Wheel	Adjusts the focus of both binocular barrels at the same time.
Diopter	Adjusts for differences in a user's eyes. Located on right eyepiece.
Tripod Adaptable	Compatible with a tripod adapter, allowing use on a tripod or car window mount.

Specifications:

Magnification	10x
Objective Lens Diameter	50 mm
Eye Relief	17 mm
Exit Pupil	5 mm
Linear Field of View	315 feet/1000 yards
Angular Field of View	6.0 degrees
Close Focus	6 feet
Interpupillary Distance	60-75 mm
Height	6.6 inches
Width	5.3 inches
Weight	30 oz
